Solar PV CAD Toolbox (English Version)

في هندسة الطاقة المتجددة

(0 التقييمات)

انشىء من قبل Noor Salem

عن هذه الدورة

This training course aims to equip participants with the necessary skills to professionally and effectively use AutoCAD in designing solar energy systems. The course covers several key topics, from the fundamentals of

design to professional-level project execution. It can be customized to include the following:

1. The course begins with an introduction to solar energy systems, explaining the most important concepts and terminologies related to solar system components and their types.

2. An explanation of the preliminary design steps, covering the essential information required before starting the design process to achieve an optimal design.

3. A comprehensive overview of the fundamentals of AutoCAD, along with the essential commands used in the design of solar energy systems.

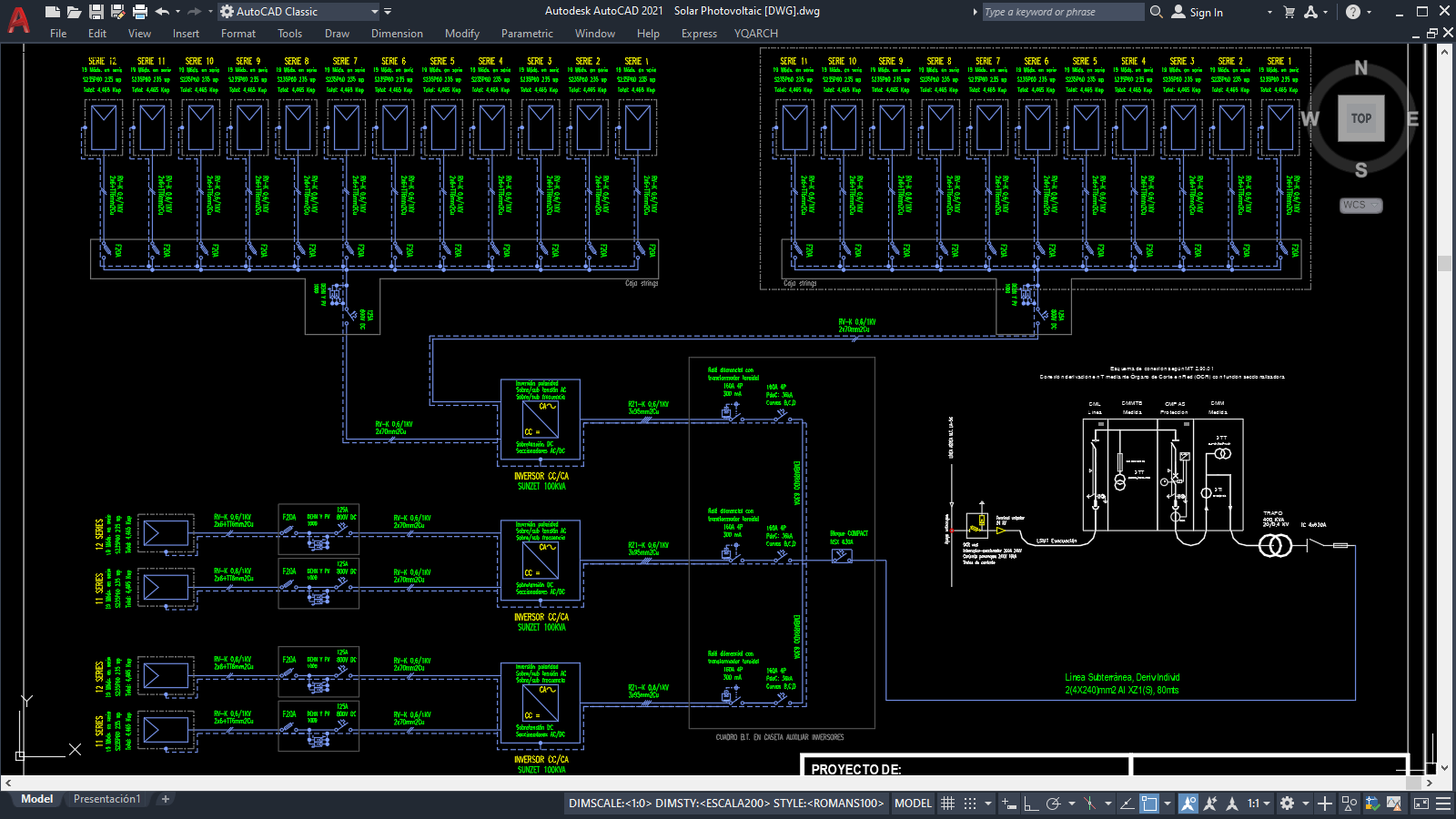

4. The first project involves designing a residential solar system, where step-by-step guidance is provided for creating solar energy system layouts, covering the following details:

General Layout, Strings Layout, Single Line Diagram Layout.

5. Essential calculations for solar energy projects, including sizing calculations for electrical components and cabling on both the DC and AC sides.

6. Datasheet analysis of solar modules and inverters.

7. The second project focuses on designing a large-scale solar power plant (SPP), incorporating advanced calculations and layout designs using AutoCAD, in addition to an explanation of the Cable Tray Layout.

Target Audience:

1. Engineers and graduates of energy, electrical, mechanical, and mechatronics engineering.
2. Professionals working in the solar energy field.
3. Individuals seeking to enhance their skills in designing solar energy system layouts.

متطلبات

Knowledge of Energy Engineering.

Knowledge of Computer Usage.

Knowledge of Electrical Engineering.

الأسئلة الشائعة

What are the expected benefits after completing this course?

You are expected to complete the course with extensive knowledge of using AutoCAD software for designing solar energy systems, which will open up multiple opportunities for working in the design field. Additionally, you will gain sufficient knowledge of solar system components, how to select them, and the necessary calculations to achieve the best design.

Will I receive the platform's digital currency, Photestcoin?

Yes. After completing the course and obtaining the certificate, you will receive the platform's digital currency, Photestcoins, which can be used for future purchases of courses and products.

Does the course include a practical project?

Yes, the course includes two practical projects: the first with a capacity of over 11 kW and the second with a capacity of over 250 kW. Additionally, the content and projects may be enriched in future course updates.

What level of experience is required to fully benefit from the course?

You can enroll in the course if you are at a beginner or intermediate level, whether you are a recent graduate, an entry-level employee, or simply passionate and interested in the field.

Are there exams to pass the course?

Yes, the course includes multiple-choice questions that you need to answer in order to pass the course.

How can I contact the instructor if I have any questions about the course?

You can contact the instructor through the course support service after purchasing it.

Does the course include supporting files?

Yes, the course includes two AutoCAD files.
